Сила: 0.12-600Квт
Напряжение:380В/440В
Частота:50Гц/60Гц
Класс защиты: IP44-56
Размер рамы: 80~335
Приметы:__________
Серии Y—H полностью закрыты, трехфазные морские асинхронные двигатели с вентиляторным охлаждением короткозамкнутого типа. Они являются вариацией дизайна совершенно новой серии Y, разработанной недавно и известной своей высокой эффективностью и пусковым моментом.. Электродвигатели применяются для привода различных машин на судах, таких как судовые насосы, морские лебедки, морской капстан, морские краны, судовые генераторы, морской брашпиль, морские сепараторы и другие вспомогательные морские средства.
Вибрация
Эффективные значения силы вибрации ограничены, измеряется в условиях холостого хода, Не превышайте приведенные в следующей таблице.
Размер рамы | 80~132 | 160~225 | 250~355 |
Ограниченная интенсивность вибрации(мм/с) | 1.8 | 2.8 | 3.5 |
Сила: 0.12-600Квт
Напряжение:380В/440В
Частота:50Гц/60Гц
Класс защиты: IP44-56
Класс изоляции: B/F/H
Температура окружающей среды: 0℃~45℃
Размер рамы: 80~335
Ключевые слова: Морской трехфразовый асинхронный двигатель серии Y-H, Three-phrase Motor, Asynchronous Motor, Y-H Series Motor, Marine motors, Electric Motors
Организация монтажа
B3——Горизонтальный, ножные крепления
B5——Горизонтальный, фланцевый монтаж
B35——горизонтальный, крепление ножки и фланца
V1——Вертикальный, фланцевый монтаж
Размер рамы | Навесные узлы(Мгновенные сообщения) |
80~225 | В3, В5, В35, В1 |
250~350 | В3, В35, В1 |

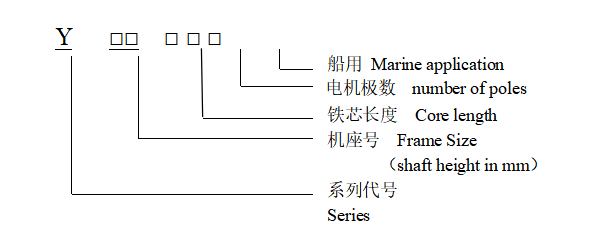

Обозначение типа
2 极 2 poles
型 号
Type |
功 率
Rated output |
电 流
Rated current (A) |
转 速
Rated speed (r/min) |
堵转转矩
额定转矩 Locked-rotor torque Rated torque |
最大转矩
额定转矩 Maximum torque Rated torque |
堵转电流
额定电流 Locked-rotor current Rated current |
效 率
Efficiency (%) |
功率因数
Power factor |
重 量
(кг) |
|||||||||
Квт | НР | 50Hz 380V | 60Гц
440V |
50Hz 380V | 60Гц
440V |
50Hz 380V | 60Гц
440V |
50Hz 380V | 60Гц
440V |
50Hz 380V | 60Гц
440V |
50Hz 380V | 60Гц
440V |
50Hz 380V | 60Гц
440V |
|||
Y80M1 2-2-H | 0.75 | 1 | 1.8 | 1.6 | 2820 | 3460 | 1.9 | 2.1 | 6.1 | 75.0 | 76.5 | 0.84 | 0.82 | 17 | ||||
1.1 | 1.5 | 2.6 | 2.2 | 2820 | 3460 | 7.0 | 76.5 | 77.5 | 0.85 | 0.85 | 19 | |||||||
Y90S-2-H | 1.5 | 2 | 3.5 | 3.1 | 2840 | 3470 | 79.5 | 80.0 | 0.82 | 0.80 | 23 | |||||||
Y90L-2-H | 2.2 | 3 | 4.9 | 4.3 | 2840 | 3470 | 82.5 | 83.5 | 0.83 | 0.81 | 26 | |||||||
Y100L-2-H | 3 | 4 | 6.2 | 5.4 | 2880 | 3490 | 7.5 | 84.0 | 84.0 | 0.87 | 0.86 | 33 | ||||||
У112М-2-Н | 4 | 5.5 | 8.2 | 7.2 | 2890 | 3500 | 86.5 | 87.0 | 0.86 | 0.84 | 46 | |||||||
Y132S1 2-2-H | 5.5 | 7.5 | 11 | 9.6 | 2900 | 3520 | 1.5 | 2.0 | 86.5 | 86.0 | 0.88 | 0.87 | 78 | |||||
7.5 | 10 | 14.6 | 12.9 | 2900 | 3520 | 87.5 | 87.0 | 0.89 | 0.88 | 90 | ||||||||
Y160M1 2-2-H | 11 | 15 | 21.6 | 18.7 | 2930 | 3540 | 1.8 | 89.0 | 88.5 | 0.87 | 0.87 | 120 | ||||||
15 | 20 | 28.9 | 25.1 | 2930 | 3540 | 89.5 | 90.0 | 0.88 | 0.88 | 135 | ||||||||
Y160L-2-H | 18.5 | 25 | 35.7 | 30.3 | 2930 | 3540 | 89.5 | 90.0 | 0.88 | 0.89 | 160 | |||||||
Y180M-2-H | 22 | 30 | 42.2 | 36.9 | 2940 | 3550 | 89.5 | 89.0 | 0.88 | 0.88 | 180 | |||||||
Y200L1 2-2-H | 30 | 40 | 57.9 | 50.3 | 2955 | 3560 | 1.7 | 1.8 | 89.5 | 89.0 | 0.88 | 0.88 | 215 | |||||
37 | 50 | 69.4 | 60.3 | 2960 | 3565 | 92.0 | 91.5 | 0.88 | 0.88 | 245 | ||||||||
Y225M-2-H | 45 | 60 | 85.9 | 76.3 | 2969 | 3572 | 90.5 | 90.0 | 0.88 | 0.86 | 330 | |||||||
Y250M-2-H | 55 | 75 | 103.2 | 91.7 | 2970 | 3570 | 92.0 | 90.5 | 0.88 | 0.87 | 400 | |||||||
Y280S-2-H | 75 | 100 | 139.2 | 120.9 | 2970 | 3580 | 92.0 | 91.5 | 0.89 | 0.89 | 535 | |||||||
Y280M-2-H | 90 | 125 | 167.1 | 143.5 | 2970 | 3580 | 93.0 | 92.5 | 0.88 | 0.89 | 550 | |||||||
Y315S-2-H | 110 | 150 | 203.0 | 180.2 | 2970 | 3580 | 1.4 | 7.1 | 92.5 | 91.0 | 0.89 | 0.88 | 980 | |||||
Y315M-2-H | 132 | 175 | 242.3 | 215.1 | 2970 | 3580 | 93.0 | 91.5 | 0.89 | 0.88 | 1080 | |||||||
Y315L1 2-2-H | 160 | 220 | 292.1 | 259.3 | 2970 | 3580 | 93.5 | 92.0 | 0.89 | 0.88 | 1160 | |||||||
200 | 270 | 365.2 | 324.6 | 2970 | 3580 | 93.5 | 92.0 | 0.89 | 0.88 | 1260 | ||||||||
Y355M-2-H | 250 | 350 | 451.4 | 400.6 | 2970 | 3580 | 1.1 | 1.9 | 93.5 | 92.0 | 0.90 | 0.89 | 1600 | |||||
Y355L-2-H | 315 | 422 | 565.7 | 502.1 | 2970 | 3580 | 94.0 | 92.5 | 0.90 | 0.89 | 1800 |
4极 4 poles
型 号
Type |
功 率
Rated output |
电 流
Rated current (A) |
转 速
Rated speed (r/min) |
堵转转矩
额定转矩 Locked-rotor torque Rated torque |
最大转矩
额定转矩 Maximum torque Rated torque |
堵转电流
额定电流 Locked-rotor current Rated current |
效 率
Efficiency (%) |
功率因数
Power factor |
重 量
(кг) |
||||||||
Квт | НР | 50Hz 380V | 60Гц
440V |
50Hz 380V | 60Гц
440V |
50Hz 380V | 60Гц
440V |
50Hz 380V | 60Гц
440V |
50Hz 380V | 60Гц
440V |
50Hz 380V | 60Гц
440V |
50Hz 380V | 60Гц
440V |
||
Y80M1 2-4-H | 0.55 | 0.75 | 1.5 | 1.4 | 1390 | 1710 | 2.0 | 2.1 | 5.2 | 72.5 | 74.0 | 0.75 | 0.71 | 17 | |||
0.75 | 1 | 2.1 | 1.8 | 1390 | 1710 | 1.9 | 6.0 | 74.0 | 76.0 | 0.75 | 0.72 | 19 | |||||
Y90S-4-H | 1.1 | 1.5 | 2.7 | 2.4 | 1400 | 1710 | 78.0 | 79.0 | 0.78 | 0.75 | 23 | ||||||
Y90L-4-H | 1.5 | 2 | 3.6 | 3.2 | 1400 | 1710 | 79.0 | 80.5 | 0.80 | 0.77 | 26 | ||||||
Y100L1 2-4-H | 2.2 | 3 | 5.0 | 4.5 | 1420 | 1730 | 7.0 | 81.5 | 82.5 | 0.81 | 0.78 | 36 | |||||
3 | 4 | 6.8 | 5.9 | 1420 | 1730 | 83.0 | 85.0 | 0.81 | 0.78 | 39 | |||||||
У112М-4-Н | 4 | 5.5 | 8.9 | 7.7 | 1440 | 1750 | 84.5 | 86.0 | 0.81 | 0.79 | 47 | ||||||
У132С-4-Н | 5.5 | 7.5 | 11.7 | 10 | 1440 | 1750 | 1.8 | 2.0 | 86.0 | 88.0 | 0.83 | 0.82 | 78 | ||||
У132М-4-Н | 7.5 | 10 | 15.4 | 13.2 | 1440 | 1750 | 87.0 | 88.5 | 0.85 | 0.84 | 98 | ||||||
Y160M-4-H | 11 | 15 | 22.6 | 19.5 | 1460 | 1760 | 88.5 | 89.0 | 0.83 | 0.83 | 123 | ||||||
Y160L-4-H | 15 | 20 | 30.5 | 26.3 | 1460 | 1760 | 7.5 | 89.0 | 90.0 | 0.84 | 0.83 | 152 | |||||
Y180M-4-H | 18.5 | 25 | 35.9 | 30.8 | 1470 | 1770 | 91.0 | 91.5 | 0.86 | 0.86 | 180 | ||||||
Y180L-4-H | 22 | 30 | 42.2 | 36.9 | 1470 | 1770 | 91.0 | 91.0 | 0.87 | 0.86 | 200 | ||||||
Y200L-4-H | 30 | 40 | 57.3 | 49.8 | 1476 | 1779 | 1.7 | 1.9 | 7.2 | 91.5 | 92.0 | 0.87 | 0.86 | 260 | |||
Y225S-4-H | 37 | 50 | 70.2 | 60.3 | 1481 | 1783 | 92.0 | 92.5 | 0.87 | 0.87 | 321 | ||||||
Y225M-4-H | 45 | 60 | 84.0 | 73.4 | 1480 | 1783 | 92.5 | 92.5 | 0.88 | 0.87 | 355 | ||||||
Y250M-4-H | 55 | 75 | 103.8 | 88.7 | 1480 | 1780 | 92.5 | 92.5 | 0.88 | 0.88 | 417 | ||||||
Y280S-4-H | 75 | 100 | 139.2 | 120.9 | 1480 | 1790 | 93.0 | 92.5 | 0.88 | 0.88 | 550 | ||||||
Y280M-4-H | 90 | 125 | 164.3 | 141.9 | 1480 | 1790 | 1.6 | 93.5 | 93.5 | 0.89 | 0.89 | 650 | |||||
Y315S-4-H | 110 | 150 | 200.8 | 177.3 | 1480 | 1790 | 1.4 | 1.8 | 6.9 | 93.5 | 92.5 | 0.89 | 0.88 | 1000 | |||
Y315M-4-H | 132 | 175 | 239.7 | 211.6 | 1480 | 1790 | 94.0 | 93 | 0.89 | 0.88 | 1100 | ||||||
Y315L1 2-4-H | 160 | 220 | 289.0 | 255.2 | 1480 | 1790 | 94.5 | 93.5 | 0.89 | 0.88 | 1160 | ||||||
200 | 270 | 361.30 | 319.0 | 1480 | 1790 | 94.5 | 93.5 | 0.89 | 0.88 | 1260 | |||||||
Y355M-4-H | 250 | 350 | 464.5 | 410.2 | 1480 | 1790 | 1.2 | 1.9 | 94.0 | 93 | 0.87 | 0.86 | 1600 | ||||
Y355L-4-H | 315 | 422 | 582.1 | 514.0 | 1480 | 1790 | 94.5 | 93.5 | 0.87 | 0.86 | 1800 |
6极 6poles
型 号
Type |
功 率
Rated output |
电 流
Rated current (A) |
转 速
Rated speed (r/min) |
堵转转矩
额定转矩 Locked-rotor torque Rated torque |
最大转矩
额定转矩 Maximum torque Rated torque |
堵转电流
额定电流 Locked-rotor current Rated current |
效 率
Efficiency (%) |
功率因数
Power factor |
重 量
(кг) |
||||||||
Квт | НР | 50Hz 380V | 60Гц
440V |
50Hz 380V | 60Гц
440V |
50Hz 380V | 60Гц
440V |
50Hz 380V | 60Гц
440V |
50Hz 380V | 60Гц
440V |
50Hz 380V | 60Гц
440V |
50Hz 380V | 60Гц
440V |
||
Y90S-6-H | 0.75 | 1. | 2.2 | 2.0 | 910 | 1130 | 1.8 | 2.0 | 5.5 | 72.5 | 74.0 | 0.70 | 0.67 | 20 | |||
Y90L-6-H | 1.1 | 1.5 | 3.2 | 2.9 | 910 | 1130 | 72.5 | 74.0 | 0.71 | 0.68 | 24 | ||||||
Y100L-6-H | 1.5 | 2 | 4.0 | 3.5 | 940 | 1150 | 77.5 | 79.5 | 0.73 | 0.70 | 33 | ||||||
У112М-6-Н | 2.2 | 3 | 5.8 | 5.2 | 940 | 1150 | 6.5 | 79.5 | 82.0 | 0.72 | 0.68 | 45 | |||||
Y132S-6-H | 3 | 4 | 7.2 | 6.4 | 960 | 1170 | 83.5 | 83.5 | 0.76 | 0.74 | 66 | ||||||
Y132M1 2-6-H | 4 | 5.5 | 9.5 | 8.2 | 960 | 1170 | 84.0 | 86.0 | 0.76 | 0.74 | 80 | ||||||
5.5 | 7.5 | 12.5 | 10.7 | 960 | 1170 | 86.0 | 87.5 | 0.78 | 0.77 | 90 | |||||||
Y160M-6-H | 7.5 | 10 | 17.1 | 14.8 | 970 | 1170 | 1.7 | 1.9 | 87.5 | 88.5 | 0.76 | 0.75 | 100 | ||||
Y160L-6-H | 11 | 15 | 25.0 | 21.7 | 970 | 1170 | 88.0 | 88.5 | 0.76 | 0.75 | 125 | ||||||
Y180L-6-H | 15 | 20 | 33.0 | 29.3 | 970 | 1180 | 7.0 | 88.5 | 88.5 | 0.78 | 0.76 | 195 | |||||
Y200L1 2-6-H | 18.5 | 25 | 37.6 | 32.7 | 980 | 1183 | 90.0 | 90.5 | 0.83 | 0.82 | 225 | ||||||
22 | 30 | 44.7 | 38.9 | 980 | 1182 | 90.0 | 90.5 | 0.83 | 0.82 | 275 | |||||||
Y225M-6-H | 30 | 40 | 61.1 | 53.1 | 985 | 1187 | 1.5 | 1.8 | 91.0 | 91.5 | 0.82 | 0.81 | 325 | ||||
Y250M-6-H | 37 | 50 | 71.0 | 61.3 | 980 | 1180 | 91.0 | 91.0 | 0.87 | 0.87 | 430 | ||||||
Y280S-6-H | 45 | 60 | 86.4 | 74.6 | 980 | 1190 | 92.0 | 92.0 | 0.86 | 0.85 | 505 | ||||||
Y280M-6-H | 55 | 75 | 103.2 | 89.7 | 980 | 1190 | 92.0 | 92.5 | 0.88 | 0.87 | 540 | ||||||
Y315S-6-H | 75 | 100 | 141.1 | 124.0 | 980 | 1190 | 1.2 | 1.7 | 92.8 | 92.3 | 0.87 | 0.86 | 990 | ||||
Y315M-6-H | 90 | 125 | 168.6 | 148.1 | 980 | 1190 | 93.2 | 92.7 | 0.87 | 0.86 | 1080 | ||||||
Y315L1 2-6-H | 110 | 150 | 205.5 | 180.5 | 980 | 1190 | 6.7 | 93.5 | 93 | 0.87 | 0.86 | 1150 | |||||
132 | 175 | 245.8 | 215.9 | 980 | 1190 | 93.8 | 93.3 | 0.87 | 0.86 | 1210 | |||||||
Y355M1 2-6-H | 160 | 220 | 302.0 | 265.3 | 980 | 1190 | 1.1 | 1.8 | 93.6 | 93.1 | 0.86 | 0.85 | 1500 | ||||
200 | 270 | 376.7 | 330.9 | 980 | 1190 | 93.8 | 93.3 | 0.86 | 0.85 | 1700 | |||||||
Y355L-6-H | 250 | 350 | 468.9 | 411.9 | 980 | 1190 | 94.2 | 93.7 | 0.86 | 0.85 | 1900 |
8极 8 poles
型 号
Type |
功 率
Rated output |
电 流
Rated current (A) |
转 速
Rated speed (r/min) |
堵转转矩
额定转矩 Locked-rotor torque Rated torque |
最大转矩
额定转矩 Maximum torque Rated torque |
堵转电流
额定电流 Locked-rotor current Rated current |
效 率
Efficiency (%) |
功率因数
Power factor |
重量
(кг) |
||||||||
Квт | НР | 50Hz 380V | 60Гц
440V |
50Hz 380V | 60Гц
440V |
50Hz 380V | 60Гц
440V |
50Hz 380V | 60Гц
440V |
50Hz 380V | 60Гц
440V |
50Hz 380V | 60Гц
440V |
50Hz 380V | 60Гц
440V |
||
Y132S-8-H | 2.2 | 3.0 | 5.8 | 5.2 | 710 | 860 | 1.7 | 1.9 | 6.0 | 80.0 | 81.0 | 0.72 | 0.68 | 66 | |||
У132М-8-Н | 3.0 | 4.0 | 7.6 | 6.8 | 710 | 860 | 82.5 | 83.5 | 0.73 | 0.69 | 80 | ||||||
Y160M1 2-8-H | 4.0 | 5.5 | 10.5 | 9.1 | 720 | 870 | 84.0 | 86.0 | 0.69 | 0.67 | 92 | ||||||
5.5 | 7.5 | 13.4 | 11.5 | 720 | 870 | 85.5 | 87.0 | 0.73 | 0.72 | 105 | |||||||
Y160L-8-H | 7.5 | 10 | 17.7 | 15.5 | 720 | 870 | 86.0 | 87.0 | 0.75 | 0.73 | 130 | ||||||
Y180L-8-H | 11 | 15 | 25.6 | 22.2 | 730 | 880 | 1.5 | 1.8 | 6.6 | 87.0 | 88.0 | 0.75 | 0.74 | 175 | |||
Y200L-8-H | 15 | 20 | 33.3 | 29.2 | 729 | 882 | 89.0 | 90.0 | 0.77 | 0.75 | 255 | ||||||
Y225S-8-H | 18.5 | 25 | 40.3 | 35.6 | 735 | 886 | 90.5 | 91.0 | 0.77 | 0.75 | 300 | ||||||
Y225M-8-H | 22 | 30 | 47.4 | 41.7 | 734 | 886 | 90.5 | 91.0 | 0.78 | 0.76 | 320 | ||||||
Y250M-8-H | 30 | 40 | 64.7 | 57.1 | 730 | 890 | 91.5 | 92.0 | 0.77 | 0.75 | 420 | ||||||
Y280S-8-H | 37 | 50 | 79.8 | 68.9 | 740 | 890 | 91.5 | 91.5 | 0.77 | 0.77 | 515 | ||||||
Y280M-8-H | 45 | 60 | 94.8 | 80.8 | 740 | 890 | 92.5 | 92.5 | 0.78 | 0.79 | 550 | ||||||
Y315S-8-H | 55 | 75 | 113.5 | 98.6 | 740 | 890 | 1.2 | 1.7 | 92.0 | 91.5 | 0.80 | 0.80 | 1000 | ||||
Y315M-8-H | 75 | 100 | 152.1 | 132.1 | 740 | 890 | 92.5 | 92.0 | 0.81 | 0.81 | 1100 | ||||||
Y315L1 2-8-H | 90 | 125 | 179.3 | 155.7 | 740 | 890 | 93.0 | 92.5 | 0.82 | 0.82 | 1160 | ||||||
110 | 150 | 218.5 | 189.6 | 740 | 890 | 6.4 | 93.3 | 92.8 | 0.82 | 0.82 | 1230 | ||||||
Y355M1 2-8-H | 132 | 175 | 264.8 | 229.9 | 740 | 890 | 1.1 | 1.8 | 93.5 | 93.0 | 0.81 | 0.81 | 1500 | ||||
160 | 220 | 320.3 | 278.1 | 740 | 890 | 93.7 | 93.2 | 0.81 | 0.81 | 1600 | |||||||
Y355L-8-H | 200 | 270 | 399.1 | 346.5 | 740 | 890 | 94.0 | 93.5 | 0.81 | 0.81 | 1800 |
Type of starting
Direction on full voltage starting for all sizes, reduced voltage starting allowable at no-load or light load.
Impregnation and Surface Treatment
The electric motor windings impregnated and well treated to obtain the adequate damp-proof anti-fungus and anti-salt-mist properties in accordance with the specifications for humid-tropic machines.
Insulation Temperature Rise
Insulation——B/F
Temp. Rise of winding——75K/100K
Permissible working temp. of bearing(thermometer method)
