Гидравлический двигатель серии ITMS

Функции

Смещение：630~3467 ml/r

Номинальное давление：18~22 MPa

Номинальный крутящий момент：1983~8930 N.m

Номинальная мощность： 39~143 kW

Макс. Скорость: 160~280 r/min

Brand Name: STF

Ключевые слова：Гидравлический двигатель серии ITMS, Hydraulic Motor

ITMS series hydraulic motor Main Characteristics:

• The piston body and shell cylinder hole motion pair in the form of STF have high power-to-mass ratio and effectively improve the comprehensive performance grade of the motor.
• The ball socket of the plunger and the ball head of the connecting rod adopt the form of linear contact hydrostatic oil film support, which can effectively increase the contact specific pressure and reduce the friction force, and improve the overall working pressure and mechanical efficiency of the motor.
• The motor adopts reinforced full roller bearing, which effectively improves the bearing capacity of the motor and enhances the anti-impact ability of the motor.
• The main transmission parts of the motor adopt special materials and advanced heat treatment technology, which improves the overall service life.
• The installation size of this series motor is the same as that of ITM series. It is a very attractive product with high power-to-quality ratio and high performance-to-price ratio for the development of ITM series motors to high voltage and high end.

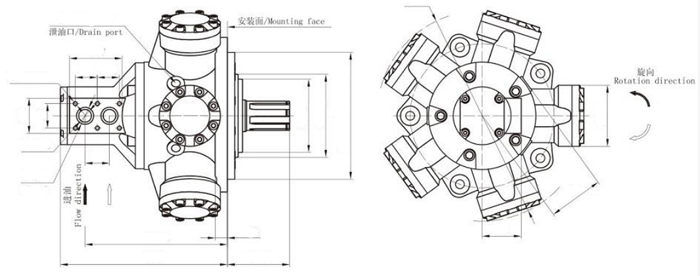

Drawing

Основные технические параметры

Ordering code/产品标识说明

1. Model-ITM
2. Series
3. Смещение (m/r)
4. Output shaft

(1)No symbol-- -standard rectangle spline shaft(the center is up to outside diameter)

(2) B--Parallel key shaft

(3) D——installation dimension same as 1 JMD series motor(Kunsan HYD element plant)

(4) I——female spline

(5) GM, SL——the installation dimension same as the M series, L series of SAI ITALY.

5. 5. Distributors

If you have a special request for dimensions, please state it in order, or we will treat it as our standard.

6. I/ O port thread

For special threads, please state in your order, or we will treat it as our standard.

7. I/O port direction

It is not clearly stated that it is consistent with the outline drawing of the motor, because the installation hole of the motor changes according to 72 °, and the direction of the inlet and outlet changes according to the position of 90 °and 180 °. The specific requirements can be determined according to the oil port diagram.
