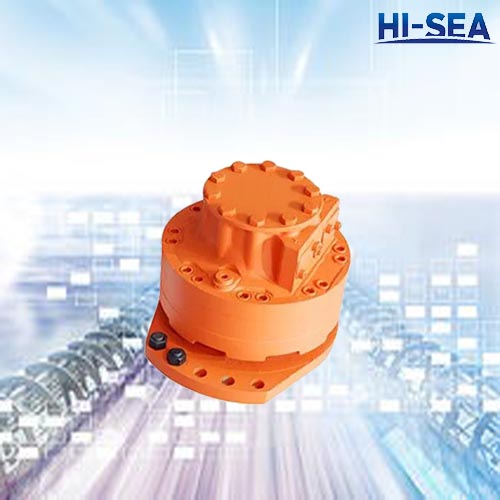

Motor de rueda de la serie CRM-PS05/PSE05

Funciones

Desplazamiento：86-4198 ml/r

Presión nominal：25 Mpa

Par nominal：342-16688 N.m

Potencia nominal： 9-110 kilovatio

Máximo. Velocidad: 75-390 r/min

Model: CRM-PS05/PSE05

Brand Name: STF

Palabras clave: Motor de rueda de la serie CRM-PS05/PSE05, Motor hidráulico serie CRM-PS05/PSE05, Motor hidráulico serie CRM-PS05/PSE05, Hydraulic Motor

CRM-PS05/PSE05 series hydraulic motor Main Characteristics:

• The product's modular design, output modules, functional modules, flow distribution modules, and brake modules, make clients choose according to their actual needs, reducing mechanical configuration and making the entire layout more flexible and straightforward.
• The output module is supported by biconical roller bearings and can withstand greater radial and shaft forces.
• The flow distribution module adopts an advanced end surface oil distribution mode and has an automatic wear compensation function, which can maintain the high volume efficiency of the hydraulic motor for a long time.
• The function module adopts high-performance slippery tiles with high load bearing, low friction and high temperature, which reduce mechanical friction loss. At the same time, it adopts output torque and non-pulsating rail curve design to improve hydraulic motors' stability and impact resistance.
• The application of new composite reinforcement technology in hydraulic motors greatly improves the fatigue resistance, wear resistance, deformation resistance and corrosion resistance of parts and components, thus enhancing the life of hydraulic motors as a whole.

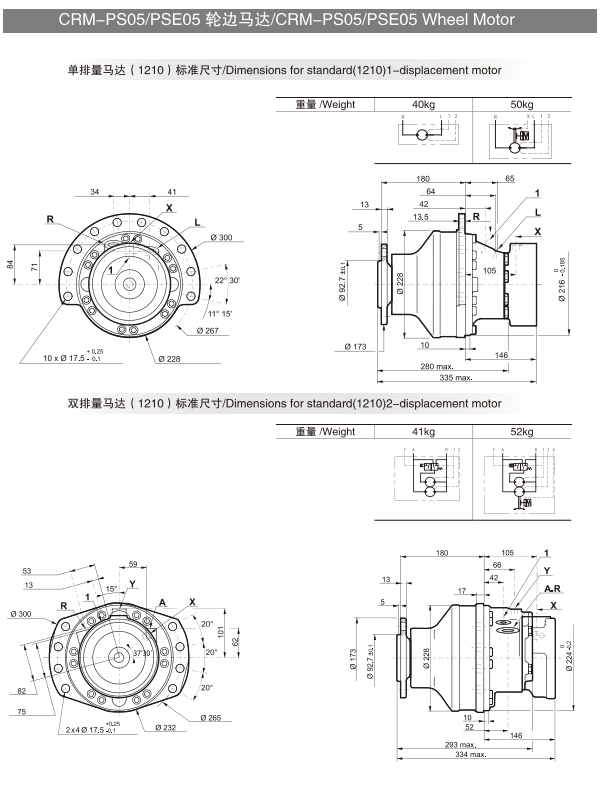

Dimensions

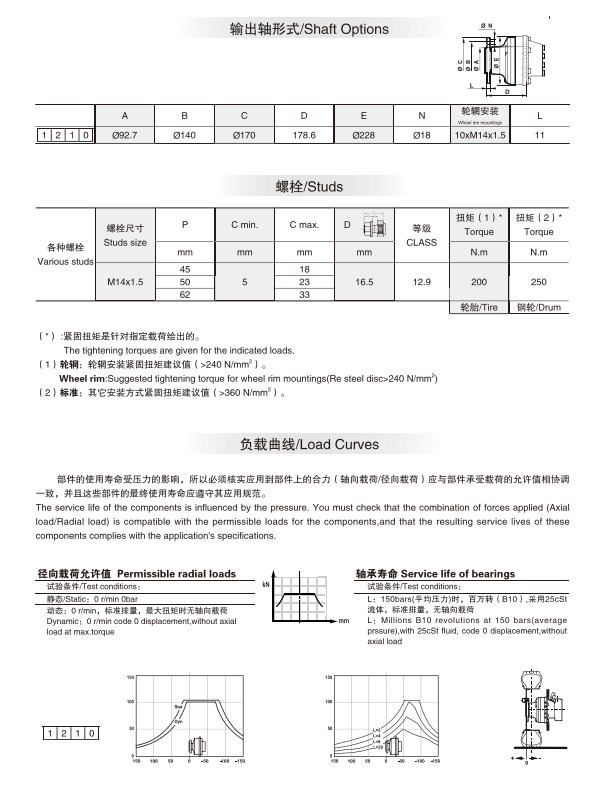

Parameters
