Hydraulikmotor der Serie ITMS18

Funktionen

Verschiebung：1248~2822 ml/r

Nenndruck：18~22 MPa

Nenndrehmoment：3929~6488 N.m

Nennleistung： 66~93 kW

Max. Geschwindigkeit: 150~300 r/min

Schlüsselwörter：Hydraulikmotor der Serie ITMS18, Hydraulikmotor der ITMS-Serie, Hydraulic Motor

ITMS18 series hydraulic motor Main Characteristics:

• The piston body and shell cylinder hole motion pair in the form of STF have high power-to-mass ratio and effectively improve the comprehensive performance grade of the motor.
• The ball socket of the plunger and the ball head of the connecting rod adopt the form of linear contact hydrostatic oil film support, which can effectively increase the contact specific pressure and reduce the friction force, and improve the overall working pressure and mechanical efficiency of the motor.
• The motor adopts reinforced full roller bearing, which effectively improves the bearing capacity of the motor and enhances the anti-impact ability of the motor.
• The main transmission parts of the motor adopt special materials and advanced heat treatment technology, which improves the overall service life.
• The installation size of this series motor is the same as that of ITM series. It is a very attractive product with high power-to-quality ratio and high performance-to-price ratio for the development of ITM series motors to high voltage and high end.

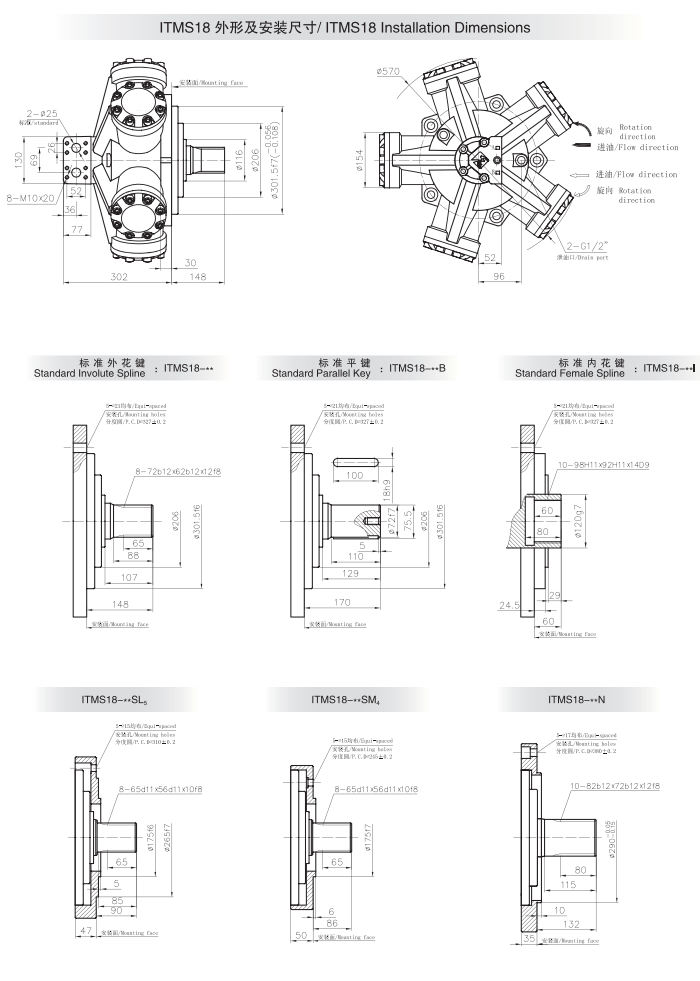

Mounting and Overall Dimensions
