» Hydraulic Motor » ITMH08 Series Hydraulic Motor

Hydraulikmotor der Serie ITMH08

Verschiebung:77~2034 ml/r

Nenndruck:21 Mpa

Nenndrehmoment:189~6321 N.m

Nennleistung: 7~88 kW

Max. Geschwindigkeit: 200~500 r/min

  • Beschreibung
  • Features & Characteristics
  • Ordering code
  • Mounting and Overall Dimensions

Beschreibung

ITMH08 Serie Hydraulikmotor ist ITMH Produkt der gleichen Serie. Es ist weit verbreitet im hydraulischen Übertragungssystem von Kunststoffmaschinen, Schiffsdeckmaschinen, Bergbaumaschinen, Maschinenbau, Schwermetallurgische Maschinen, Öl- und Kohlebergbaumaschinen, Leichte Industrieanlagen, Hebetechnik, Bohrgeräte und andere Maschinen. wie z.B. der Schneckenantrieb der Spritzgießmaschine, das Anheben der Winde, der Antrieb der Rolle und anderer rotierender Maschinen usw..

Wichtigste technische Parameter



型号

ART

理论排量

Theorie

Verschiebung

压力/Druck 扭矩/Torque 最高转速 Max.Speed 顾定功率 Rated Power
颤定压力

Nenndruck

最高压力

Max. Druck

额定扭距

Nenndrehmoment

ml/r Mpa Mpa N.m r/min KW
ITMH 77~2034 21 23 189~6321 200~500 7~88

Funktionen

Verschiebung:77~2034 ml/r

Nenndruck:21 Mpa

Nenndrehmoment:189~6321 N.m

Nennleistung: 7~88 kW

Max. Geschwindigkeit: 200~500 r/min

Brand Name: STF

Schlüsselwörter:Hydraulikmotor der Serie ITMH08, Hydraulikmotor der ITMH-Serie, Hydraulic Motor



ITMH08 series hydraulic motor Main Characteristics:

  • Rated working pressure 21Mpa, increased by 25%.
  • Increase the rated speed by 10%.
  • Increase rated power by more than 10%.
  • Reliability and service life have been improved.

Ordering code/产品标识说明

  1. Model-ITMH
  2. Series
  3. Verschiebung (m/r)

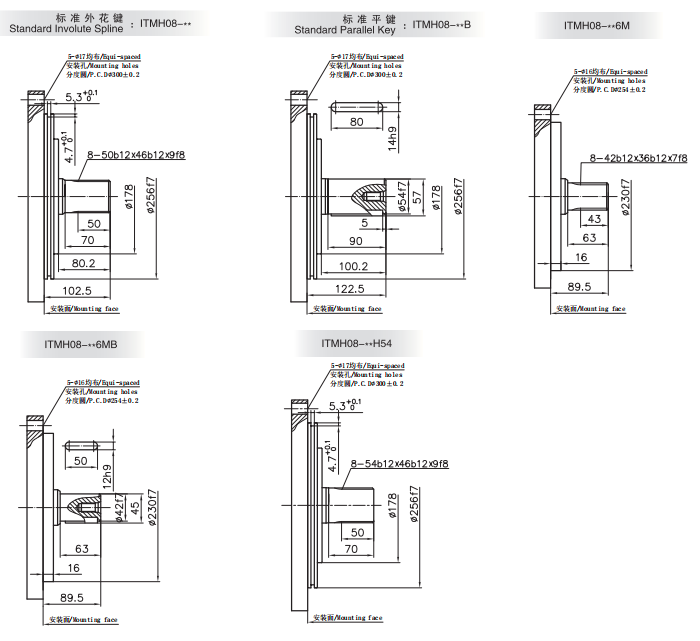

  4. Output shaft

(1)No symbol-- -standard rectangle spline shaft(the center is up to outside diameter)

(2) B--Parallel key shaft

(3) D——installation dimension same as 1 JMD series motor(Kunsan HYD element plant)

(4) I——female spline

(5) GM, SL——the installation dimension same as the M series, L series of SAI ITALY.

  1. 5. Distributors

If you have a special request for dimensions, please state it in order, or we will treat it as our standard.

  1. I/O port thread

For special threads, please state in your order, or we will treat it as our standard.

  1. I/O port direction

It is not clearly stated that it is consistent with the outline drawing of the motor, because the installation hole of the motor changes according to 72 °, and the direction of the inlet and outlet changes according to the position of 90 °and 180 °. The specific requirements can be determined according to the oil port diagram.

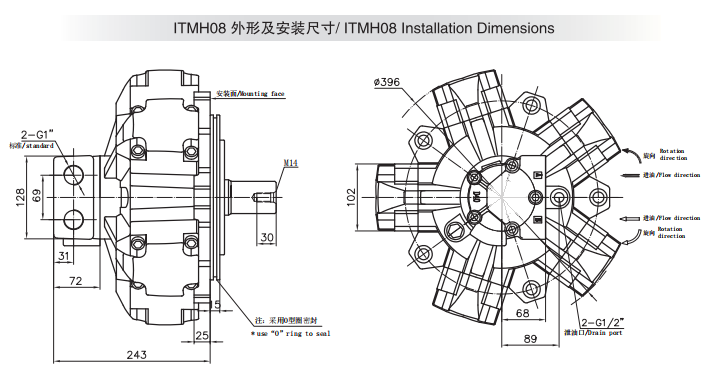

Mounting and Overall Dimensions
