Hydraulikmotor der Serie ITMH02

Funktionen

Verschiebung：77~2034 ml/r

Nenndruck：21 Mpa

Nenndrehmoment：189~6321 N.m

Nennleistung： 7~88 kW

Max. Geschwindigkeit: 200~500 r/min

Brand Name: STF

Schlüsselwörter：Hydraulikmotor der Serie ITMH02, Hydraulikmotor der ITMH-Serie, Hydraulic Motor

ITMH02 series hydraulic motor Main Characteristics:

• Rated working pressure 21Mpa, increased by 25%.
• Increase the rated speed by 10%.
• Increase rated power by more than 10%.
• Reliability and service life have been improved.

Ordering code/产品标识说明

1. Model-ITMH
2. Series
3. Verschiebung (m/r)

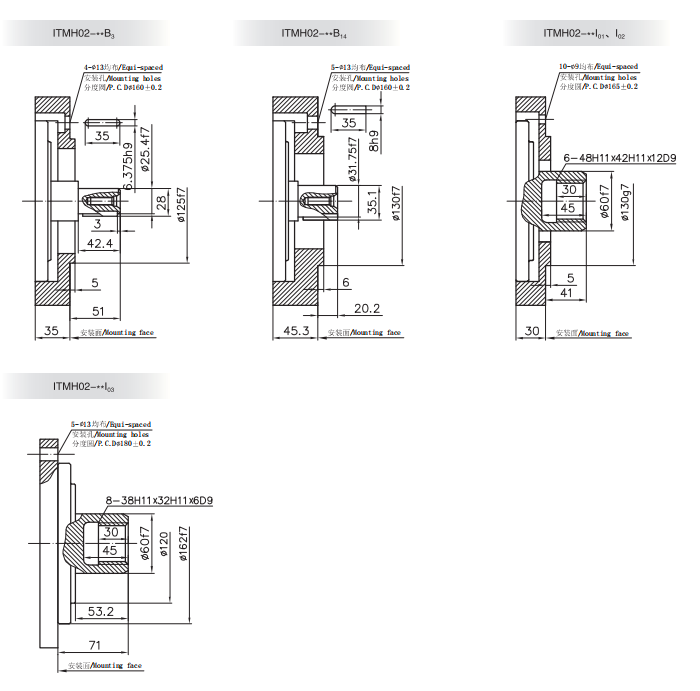

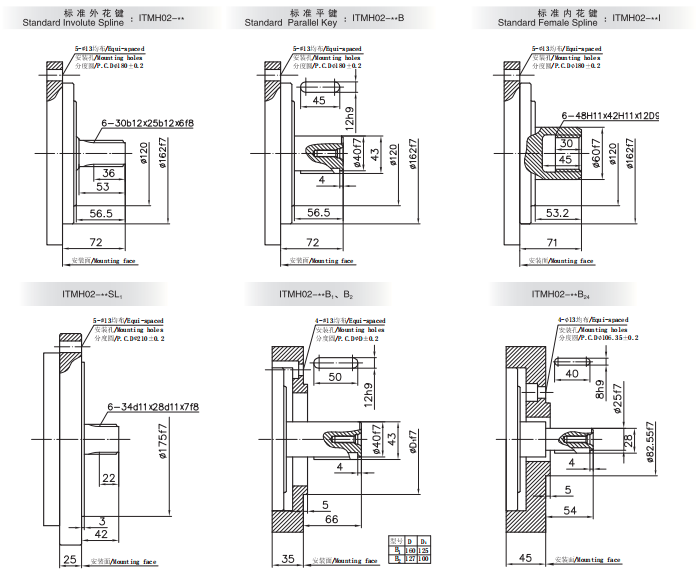

4. Output shaft

(1)No symbol-- -standard rectangle spline shaf(the center is up to outside diameter)

(2) B--Parllel key shaft

(3) D——installation dimension same as 1 JMD series motor(KunSan HYD element plant)

(4) I——female spline

(5) GM, SL——the installation dimension same as M series, L series of SAI ITALY.

5. 5. Distributors

If you have special request of dimensions, please state it in order, or we will treat it as our standard.

6. I/ Oport thread

For special thread, please state in your order, or we will treat it as our standard.

7. I/O port direction

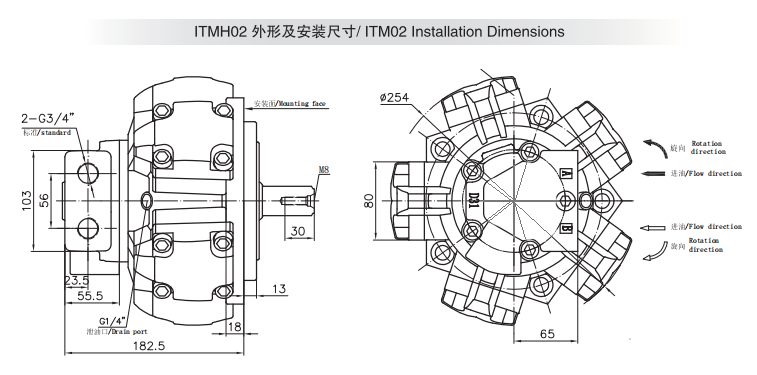

It is not clearly stated that it is consistent with the outline drawing of the motor, because the installation hole of the motor changes according to 72 °, and the direction of the inlet and outlet changes according to the position of 90 °and 180 °. The specific requirements can be determined according to the oil port diagram.
