Hydraulikmotor der ITM-Serie

Funktionen

Verschiebung：64~10016 ml/r

Nenndruck：14/16 Mpa

Nenndrehmoment：150~19843 N.m

Nennleistung： 6~151 kW

Max. Geschwindigkeit: 80~450 r/min

Brand Name: STF

Schlüsselwörter： Hydraulikmotor der ITM-Serie, Hydraulic Motor

ITM series hydraulic motor Main Characteristics:

• Low noise due to its crankshaft & con-rod structure and cylinder & piston framework of low vibration frequency;
• Steady performance at low speed; hohes Anlaufdrehmoment;
• Good reliability and less leakage due to the flat compensation distributor; special seals between piston and cylinder guarantee its higher volumetric efficiency;
• Enable reversible rotation and certain external radial & axial force on the output shaft.

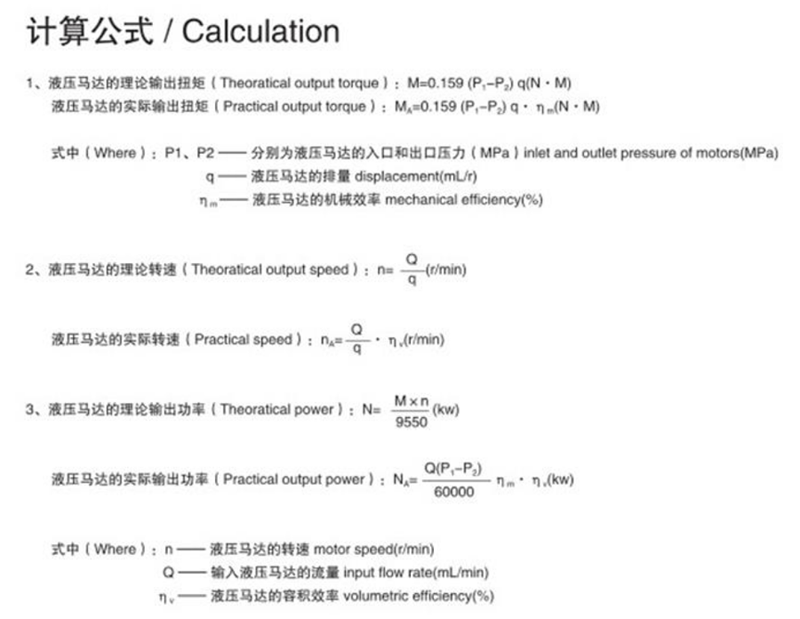

Berechnung

Ordering code/产品标识说明

1. Model-ITM
2. Series
3. Verschiebung (m/r)
4. Output shaft

(1)No symbol-- -standard rectangle spline shaft(the center is up to outside diameter)

(2) B--Parallel key shaft

(3) D——installation dimension same as 1 JMD series motor(Kunsan HYD element plant)

(4) I——female spline

(5) GM, SL——the installation dimension same as the M series, L series of SAI ITALY.

5. Distributors

If you have a special request for dimensions, please state it in order, or we will treat it as our standard.

6. I/ O port thread

For special threads, please state in your order, or we will treat it as our standard.

7. I/O port direction

It is not clearly stated that it is consistent with the outline drawing of the motor, because the installation hole of the motor changes according to 72 °, and the direction of the inlet and outlet changes according to the position of 90 °and 180 °. The specific requirements can be determined according to the oil port diagram.

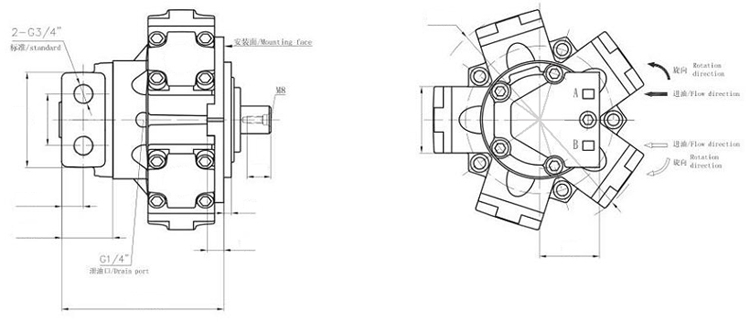

Drawing

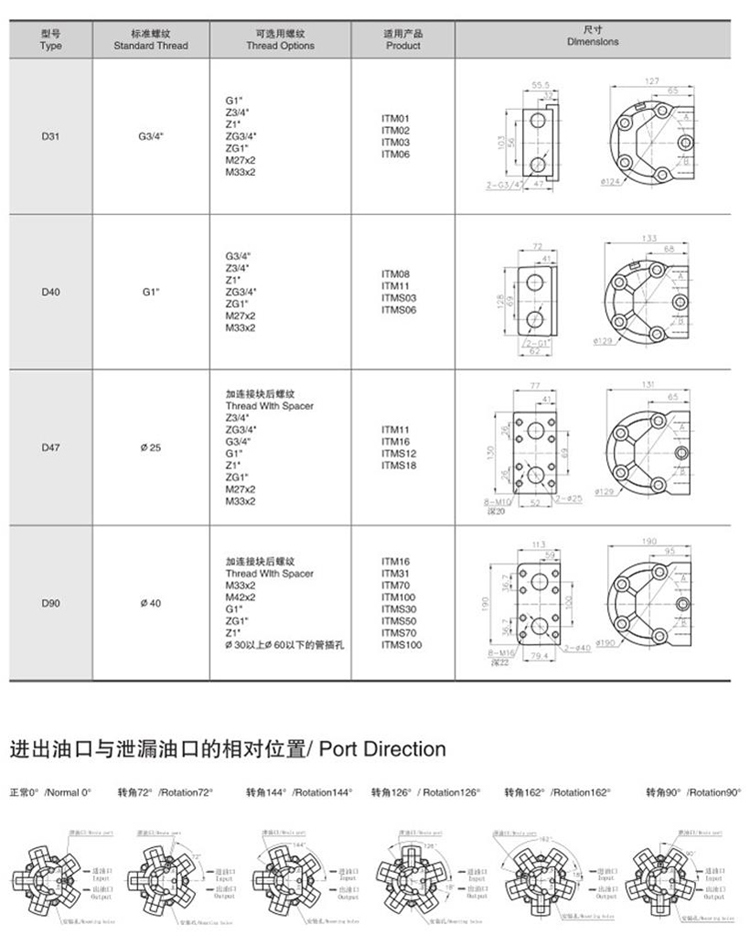

Distributor(通油盘种类）
