Wellenmotor der Serien CRM-PS02/PSE02

Funktionen

Verschiebung：86~398 ml/r

Nenndruck：25 Mpa

Theoretisches Drehmoment：273~633 N.m

Max. Macht： 9~22 kW

Max. Geschwindigkeit: 165~390 r/min

Model: CRM-PS02/PSE02

Brand Name: STF

Schlüsselwörter: Wellenmotor der Serien CRM-PS02/PSE02, Hydraulikmotor der Serie CRM-PS02/PSE02, Hydraulikmotor der Serie CRM-PS, Hydraulic Motor

CRM-PS02/PSE02 series hydraulic motor main characteristics:

• The product's modular design, output modules, functional modules, flow distribution modules, and brake modules, make clients choose according to their actual needs, reducing mechanical configuration and making the entire layout more flexible and simple.
• The output module is supported by biconical roller bearings and can withstand greater radial and shaft forces.
• The flow distribution module adopts an advanced end surface oil distribution mode and has an automatic wear compensation function, which can maintain the high volume efficiency of the hydraulic motor for a long time.
• The function module adopts high-performance slippery tiles with high load bearing, low friction and high temperature, which reduce mechanical friction loss. At the same time, it adopts output torque and non-pulsating rail curve design to improve the stability and impact resistance of the hydraulic motor.
• The application of new composite reinforcement technology in hydraulic motors greatly improves the fatigue resistance, wear resistance, deformation resistance and corrosion resistance of parts and components, thus improving the life of hydraulic motors as a whole.

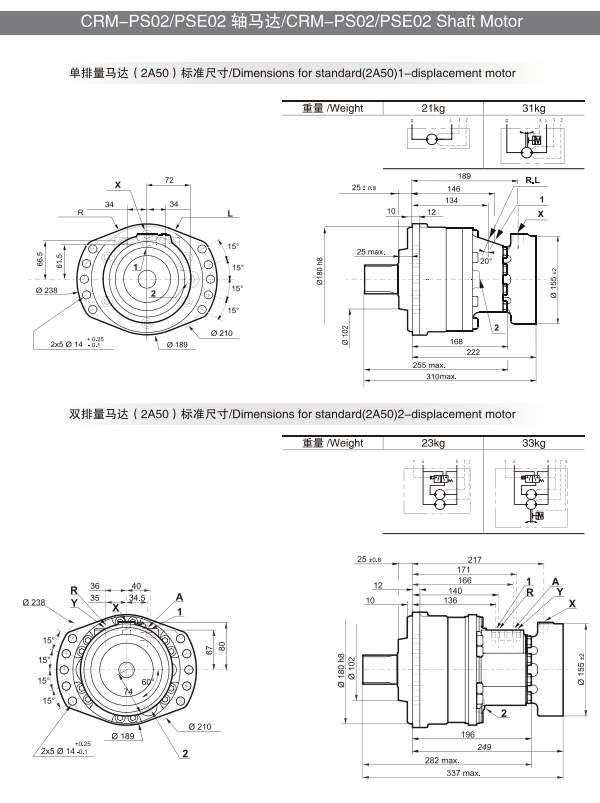

Dimensions

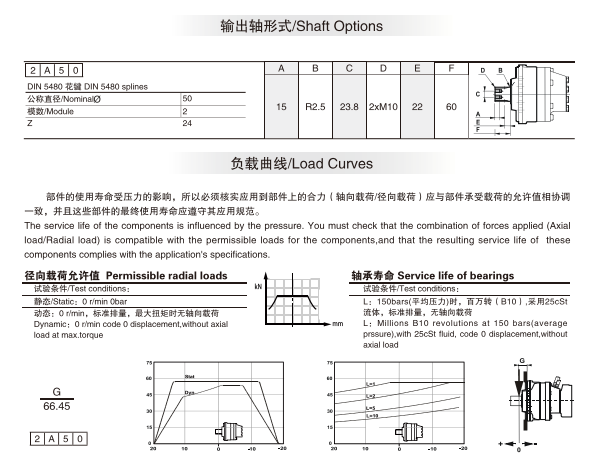

Parameters
